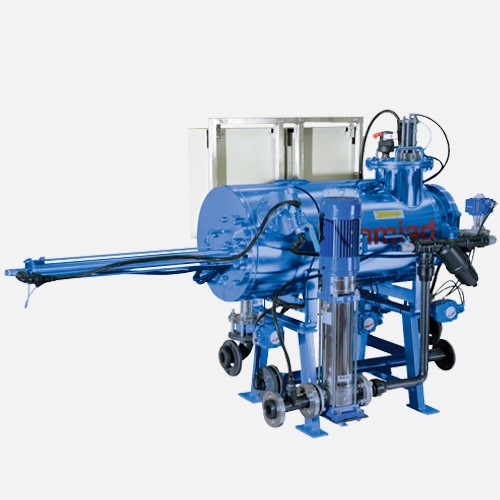

AMF Microfiber Filters (Auto Cleaning Cartridge Filter)

Innovative self-cleaning cassettes microfiber water filters for treatment as fine as 2 micron

Features:

-TSS, NTU & SDI reduction for potable and waste water applications

-Effective removal of Giardia Cysts

-Cartridge performance without cartridge replacement

-Outperforms traditional sand media systems

-Side stream filter for cooling water system/ cooling tower

-Pre-filtration for R.O. desalination and other sub micron systems

-Provide complete water treatment and filtration solutions for Municipalities

-Environmentally friendly no chemical treatment required

Like what you're looking?
Enquiry Now
How the AMF2 Filters Work
General
Amiad's AMF2 Series consists of innovative self-cleaning microfiber water-filters for treatments as fine as 2 micron that provides cartridge filter performance without cartridge filter replacement. The AMF² filters support flow-rates of up to 320 m³/h (1410 US gpm), in filtration degrees of 20 to 2 micron.


The Filtering Process
The AMF² filters remove dirt particles as water flows through multi-layered microfiber cassettes (1). These are attached to collector pipes which allow the process water to flow from the filters' outlet (2). Dirt particles that accumulate on and in-between the microfiber layers create a pressure differential. At a preset pressure differential value or time interval, the control unit activates the self-cleaning cycle, described as follows:

The Self-Cleaning Process
The inlet (3) and outlet (4) valves close and the drain (5) valve opens. After the filter vessel empties, the booster pump (6) delivers pressurized water to the shuttle pipe (7) on which the flush nozzles are mounted (8). These nozzles straddle the cassettes and spray both sides of a cassette with high powered jet streams that penetrate the microfiber layers and dislodge the debris. When these jet streams hit the plastic cassette support, they reflect outward, dislodging the debris from the cassettes and out the drain. This process ensures 100% effective cleaning. The piston assembly shuttles the spray nozzles across a single row of cassettes on each stroke. When the nozzles reach the end of a row, the turn mechanism indexes the filter package to the next row of cassettes.
The piston then shuttles in the opposite direction, cleaning the cassettes as the nozzles traverse them.
After cleaning all 35 rows of cassettes, the filter is clean. The drain valve closes and the inlet valve re-opens, filling the filter vessel. After the vessel is full, a "filter to waste" (9) valve opens. This eliminates any residual contaminant that may have entered the collector pipes during the flush process. Then, the "filter to waste" valve closes, the outlet valve opens and the filter is back on-line.




AMF² Models

Amiad's AMF² product-line consists of the following models:
  • AMF²-36K for up to 30 m³/h (132 US gpm)
  • AMF²-93K for up to 50 m³/h (220 US gpm)
  • AMF²-370K for up to 320 m³/h (1410 US gpm)
